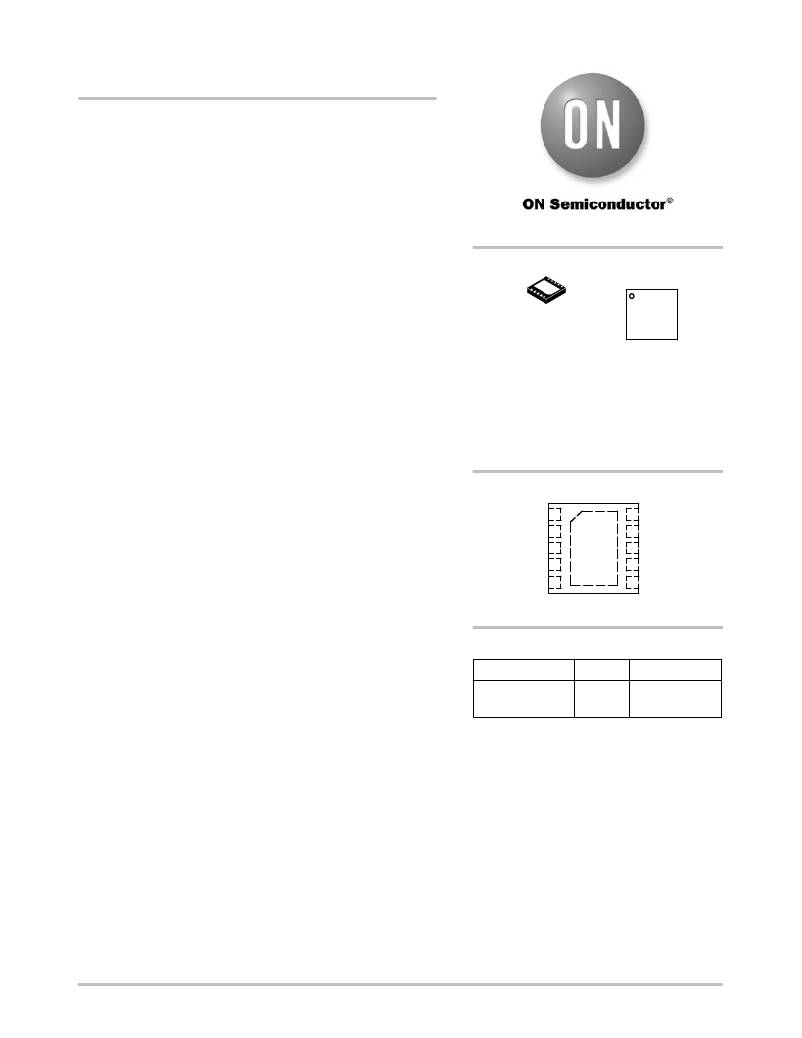

NCP1597B
1 MHz, 2 A Synchronous
Buck Regulator
The NCP1597B is a fixed 1 MHz, high ? output ? current,
synchronous PWM converter that integrates a low ? resistance,
high ? side P ? channel MOSFET and a low ? side N ? channel MOSFET.
The NCP1597B utilizes internally compensated current mode control
to provide good transient response, ease of implementation and
excellent loop stability. It regulates input voltages from 4.0 V to 5.5 V
down to an output voltage as low as 0.8 V and is able to supply up to
2 A.
The NCP1597B has features including fixed internal switching
frequency (F SW ), and an internal soft ? start to limit inrush current.
Using the EN pin, shutdown supply current is reduced to 3 m A
maximum.
Other features include cycle ? by ? cycle current limiting, short ?
circuit protection, power saving mode and thermal shutdown.
Features
? Input Voltage Range: from 4.0 V to 5.5 V
? Internal 140 m W High ? Side Switching P ? Channel MOSFET and
90 m W Low ? Side N ? Channel MOSFET
? Fixed 1 MHz Switching Frequency
? Cycle ? by ? Cycle Current Limiting
? Overtemperature Protection
? Internal Soft ? Start
? Start ? up with Pre ? Biased Output Load
? Adjustable Output Voltage Down to 0.8 V
? Power Saving Mode During Light Load
? These are Pb ? Free Devices
Applications
? DSP Power
? Hard Disk Drivers
? Computer Peripherals
? Home Audio
? Set ? Top Boxes
? Networking Equipment
? LCD TV
? Wireless and DSL/Cable Modem
? USB Power Devices
http://onsemi.com
MARKING
DIAGRAM
1597B
DFN10 ALYW G
CASE 485C G
1597B = Specific Device Code
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
G = Pb ? Free Package
(Note: Microdot may be in either location)
PIN CONNECTIONS
EN 1 10 PGND
VCC 2 9 PGND
VCCP 3 8 LX
AGND 4 7 LX
FB 5             6 NC
(Top View)
ORDERING INFORMATION
Device Package Shipping ?
NCP1597BMNTWG DFN10 3000 / Tape &
(Pb ? Free) Reel
?For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
? Semiconductor Components Industries, LLC, 2013
April, 2013 ? Rev. 2
1
Publication Order Number:
NCP1597B/D
